Modular Power System Kit with 7" DisplayProduct no: K970A

£1,064.40 each inc. VAT

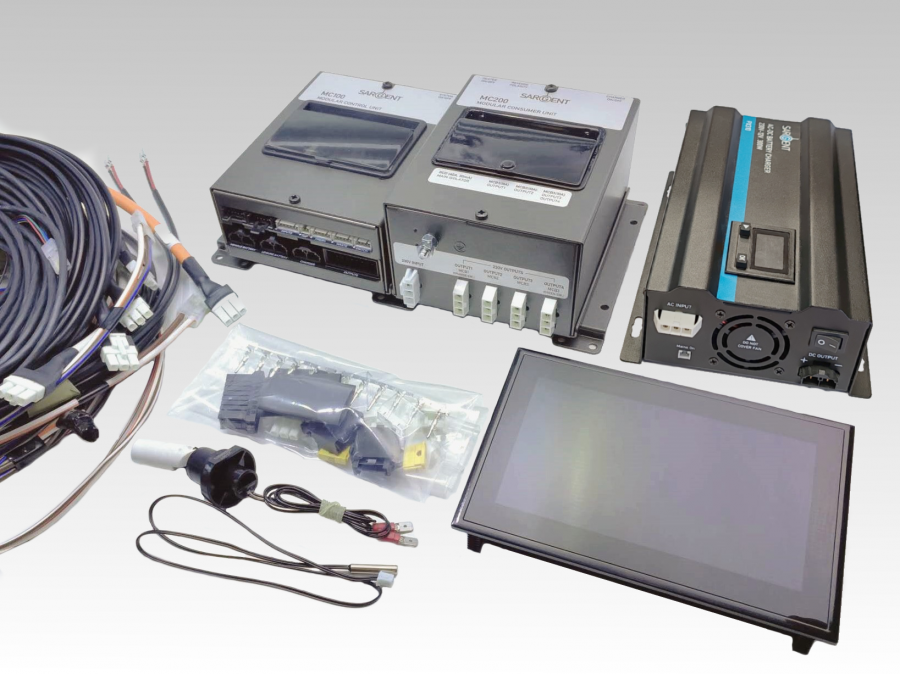

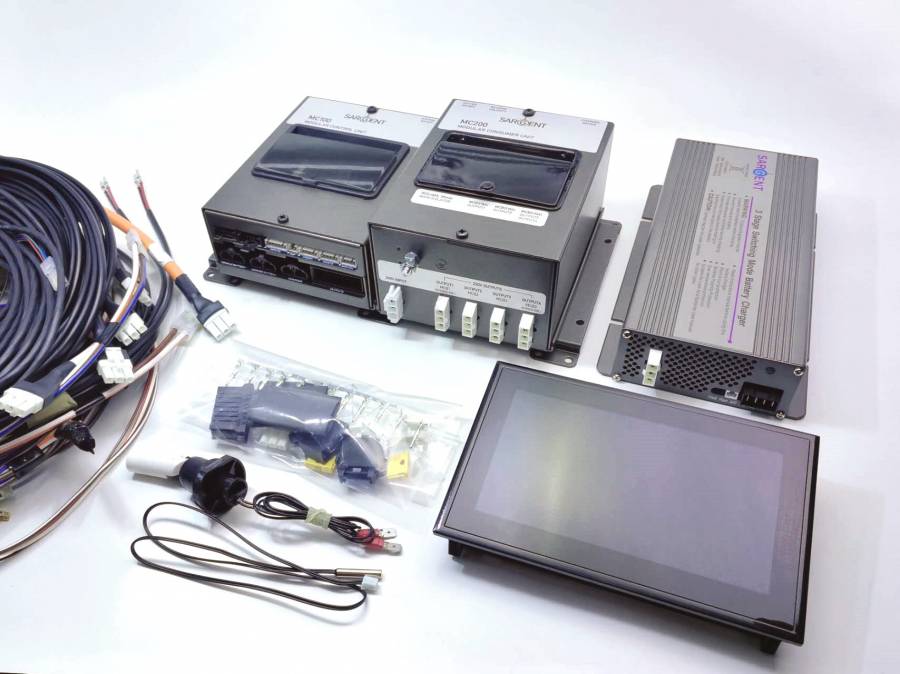

Complete power system kit containing:- Control Unit, Mains Unit, 7" Display, Battery Charger, Water sensors, Wiring harnesses & Connector/Fuse kit

£1,064.40 each inc. VAT

Product Description

The Modular Power System is both compact and flexible, allowing mounting as a single unit or separately where space is a premium. The MC100 is the hub of the system providing power, switching and monitoring for 12 volt accessories such as heating, lighting and water systems. The MC200 provides RCD and MCB protection for 230 volt mains circuits. The EC970 7" touchscreen display offers intuitive controls for monitoring and control of Lighting, Power, Water and Environmental sensors. The system can be easily expanded through the addition of intelligent CAN Bus accessories such as Lithium batteries, Ultrasonic water sensors, Solar regulators & Battery chargers

Specification

SpecifcationValue
Product CodeMC100
Leisure & Vehicle Inputs2 x 20A battery inputs via 2-way connectors
Charger Input1 x 25A input via 2-way connector
OutputsUp to 25A total output via 8 x blade fuses
Inputs (signals)Engine run + multiple vehicle connections
Temperature Input1 x External Temp Sensor
Fresh & Waste Inputs4 x Fresh levels, 1 x Waste level
CommunicationCAN Bus
Product CodeMC200
Input Voltage230V AC @ 0-16A
Output ProtectionRCD: 1x40A, 30mA
MCBs: 1x16A + 2x10A

Attached Files

Modular Power System Kits_Sales Flyer

Download

Modular Power System_K970A_Installation & User Instructions

Download

Technical Support

If you need help or advice about this product we have a Support Team to help with any enquiries you may have 01482 678981.

£1,064.40 each inc. VAT
