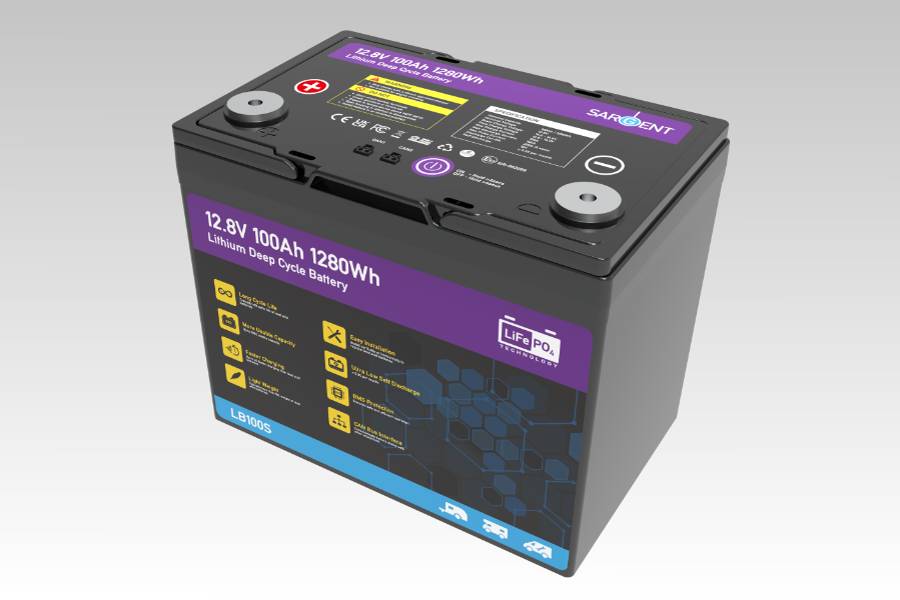

100Ah Deep Cycle Lithium Battery with CAN Bus

100Ah Deep Cycle Lithium Battery with CAN Bus

Product no: LB100S

100Ah Deep cycle LiFePO4 lithium battery with CAN Bus connectivity

  • Price

    £324.00 each inc. VAT

  • Lead time

    5 working days
- +

Description

The Sargent range of lithium deep cycle batteries provide a simple drop-in replacement for most lead acid batteries used in leisure applications. They provide significant advantages over lead acid, including reduced weight, longer life, a more useable capacity and faster charging. By using the integrated CAN Bus communication, single or dual batteries are able to connect with Sargent power control systems to provide additional battery management features.

Specification

  • Nominal Capacity

    100Ah

  • Nominal Voltage

    12.8V

  • Rec Boost charge voltage

    14.2 - 14.6V

  • Rec Float charge voltage

    13.6 - 13.9V

  • Max charge current

    100A

  • Max pulse current (3 secs)

    200A

  • Cut-off / Re-connect voltage

    10.0V / 10.8V

  • Self discharge per month

    ~20% (Normal Operation) / <0.3% (Sleep Mode)

  • Communication

    CAN Bus

  • Form factor

    Group 24

  • Terminals

    M8

  • Dimensions (LxWxH)

    260 x 168 x 209mm

  • Weight

    9.5kg

Downloads

100Ah Lithium Battery Datasheet 100Ah Lithium Battery Handbook
