10amp Solar Regulator

10amp Solar Regulator

Product no: 15220

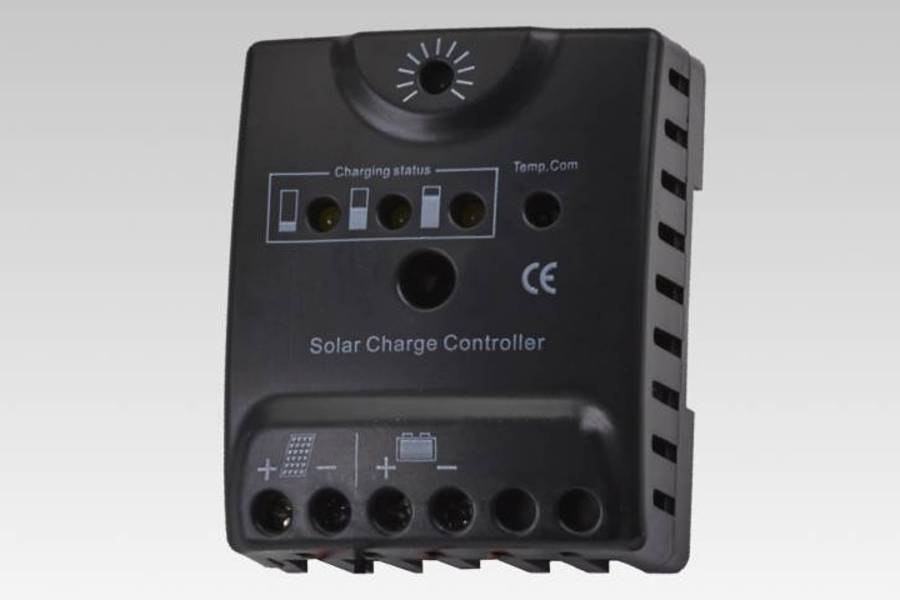

10amp solar regulator and charge controller

  • Price

    £49.30 each inc. VAT

  • Lead time

    5 working days
- +

Description

10A Solar regulator and charge controller is designed to assist with the efficent charge of your battery/batteries. Features include two stage charging, status LED indicates battery charging and reverse leakage protection circuit.

Specification

  • Equalization Voltage

    14.5V

  • Boost Voltage

    14.8V

  • Float Voltage

    13.7V

  • Max Charge Current

    10A

  • Self Current Consumption

    <4mA

  • Temp. Comp.

    -4mV / cell * K

  • Temp. Range

    -40 ~ +50°C

  • Case Protection

    IP22

  • Max cable size

    16mm2

  • Dimensions (LxWxH)

    86 x 68 x 36mm

  • Weight

    145g
