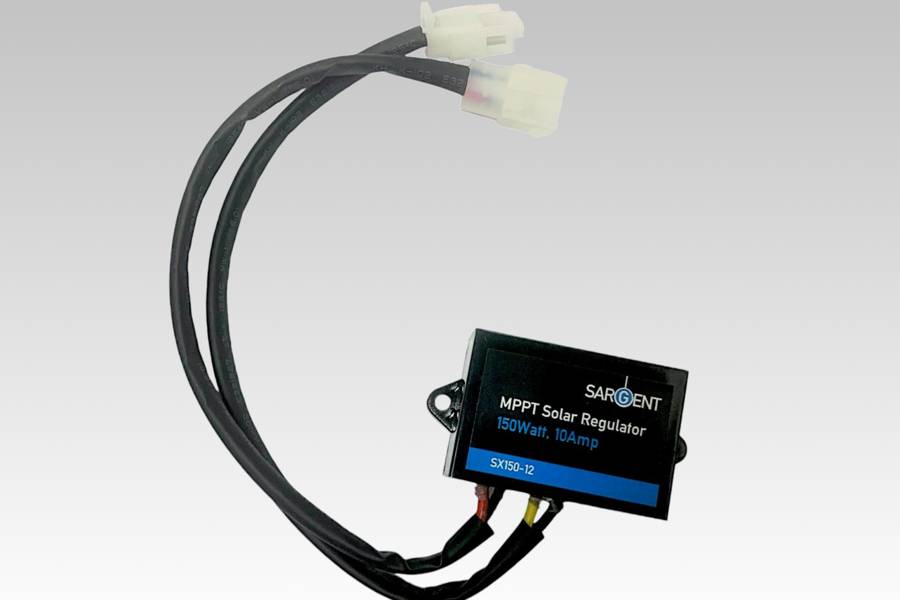

150watt, 10amp MPPT Solar Regulator

Product no: SX150-12

150watt, 10amp Solar Regulator with Maximum Power Point Tracking

  • Price

    £64.86 each inc. VAT
  • Lead time

    5 working days
- +

Description

This is NOT a replacement for the EC500 solar regulator

This can be used a replacement for the 15778 (white solar regulator)

This 10amp solar regulator uses Maximum Power Point Tracking (MPPT) technology to extract the maximum possible energy from the connected solar panels. In this way it can typically harvest 25% more energy than standard solar regulators. The regulators are compact and simple to fit via their plug & play connectors, as used on the Sargent solar panel ranges.

Specification

  • Power

    150W
  • Solar input voltage

    16 - 25V
  • Output voltage

    13.8V
  • Output current

    10A (max)
  • Standby current

    11mA (max)
  • Regulation method

    MPPT
  • Efficiency

    96% (max)
  • Ingress rating

    IP67
  • Dimensions (LxWxH)

    40 x 75 x 22mm
  • Weight

    115g
  • Cable length

    250mm
