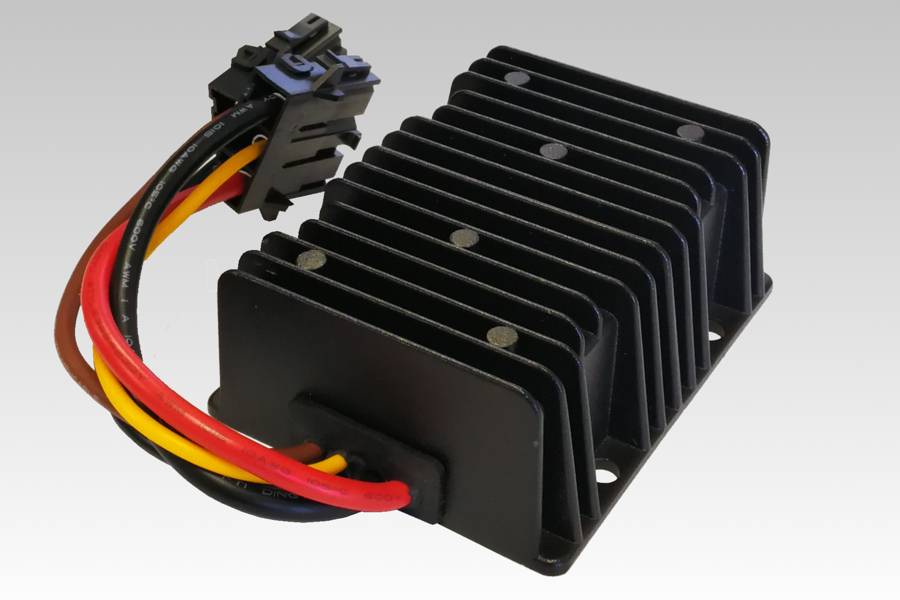

20 Amp, 2-Stage DC-DC Charger

Product no: DX320-KIT

Compact 20amp DC-DC battery charger with 2 stage charging profile

  • Price

    £160.13 each inc. VAT
  • Lead time

    5 working days
- +

Description

This battery charger is a compact, cost effective option for van conversions, particularly when the base vehicle is fitted with a smart alternator, such as Euro6 vehicles

The charger can provide up to 20 amps to the leisure battery and uses a 2-Stage profile to ensure fast, efficient charging during driving.

The unit can be used with most leisure battery types, including Lead Acid, AGM & LiFePO4 (We advise checking compatibility with your battery manufacturer before installing)

The charger also features a rugged waterproof casing with silent fanless cooling.

Supplied with connector kit for plug & play installation.

Specification

  • Power

    284W (max)
  • Input voltage range

    8 - 36V
  • Output voltage

    14.2V
  • Output current

    20A (max)
  • Standby current

    0mA (D+ off) / 130mA (D+ on)
  • Efficiency @12V

    94%
  • Ingress rating

    IP68
  • Engine run (D+) input

    Yes
  • Dimensions (LxWxH)

    100 x 78 x 39mm
  • Weight

    500g
