30 Amp, 3-Stage DC-DC Charger with CAN Bus

30 Amp, 3-Stage DC-DC Charger with CAN Bus

Product no: DXC30-KIT

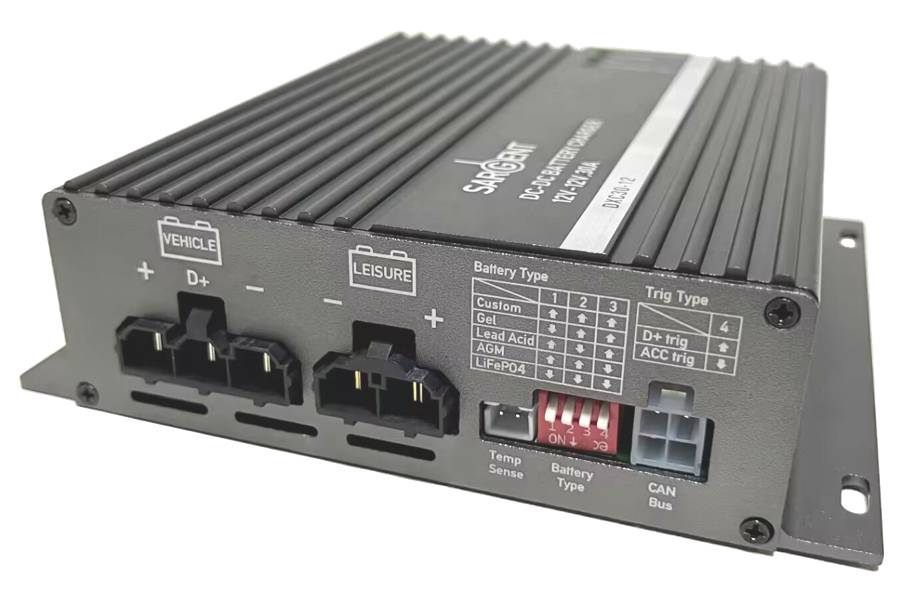

30amp DC-DC battery charger with configurable 3-stage charging profile and CAN Bus connectivity

  • Price

    £242.44 each inc. VAT

  • Lead time

    5 working days
- +

Description

This unit takes power from the vehicle battery and alternator, to provide a rapid multi-stage charging of a leisure battery. It is particularly useful when the base vehicle is fitted with a smart alternator, such as Euro6 vehicles.

The charger can provide up to 30 amps to the leisure battery and uses a 3-Stage profile to ensure fast, efficient charging during driving.

The unit can be configured for most leisure battery types, including Lead Acid, Gel, AGM & LiFePO4 (We advise checking compatibility with your battery manufacturer before installing)

The charger also features a rugged extruded casing with intelligent fan cooling to reduce noise.

Supplied with connector kit for plug & play installation.

Specification

  • Power

    390W (max)

  • Input voltage range

    10.5 - 15.4V

  • Output voltage

    8 - 16V

  • Output current

    30A (max)

  • Standby current

    17mA (max)

  • Efficiency @12V

    94%

  • Engine run (D+) input

    Yes

  • Communication

    CAN Bus

  • Dimensions (LxWxH)

    147 x 118 x 41mm

  • Weight

    460g

Downloads

DXC30-12 Installation & User Instructions DXC30-KIT Datasheet
