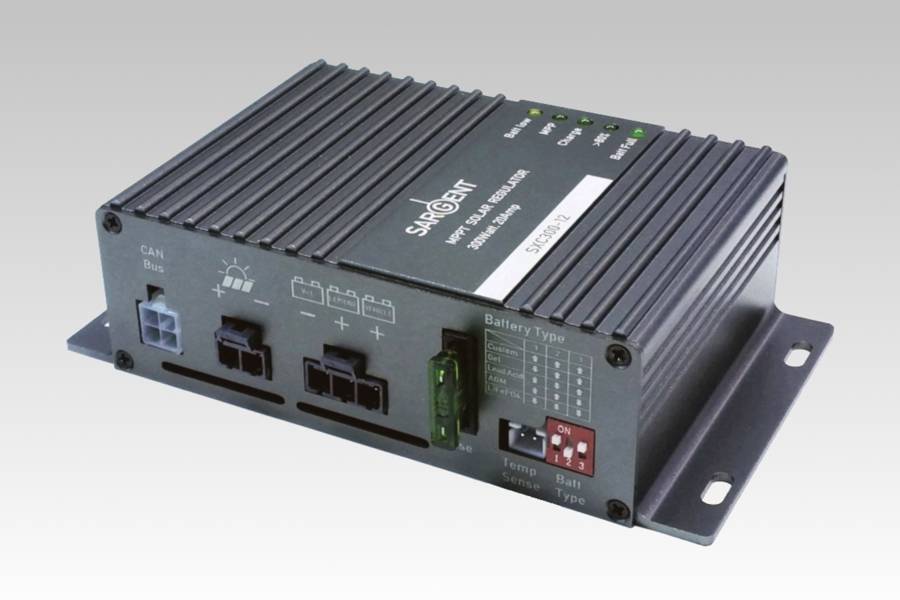

300watt, 20amp Dual MPPT Solar Regulator with CAN Bus

300watt, 20amp Dual MPPT Solar Regulator with CAN Bus

Product no: SXC300-KIT2

300watt, 20amp Dual Solar Regulator with Maximum Power Point Tracking and CAN Bus connectivity

  • Price

    £140.08 each inc. VAT

  • Lead time

    5 working days
- +

Description

This 20amp solar regulator uses Maximum Power Point Tracking (MPPT) technology to extract the maximum possible energy from the connected solar panels. In this way it can typically harvest 30% more energy than standard solar regulators. The configurable output provides multi-stage charging to the leisure battery and is also able to trickle charge the vehicle battery to avoid starting problems.

Supplied with connector kit for plug & play installation.

Specification

  • Power

    300W

  • Solar input voltage

    15 - 50V

  • Output voltage

    13.5 - 14.8V

  • Output current

    20A (Leisure max), 2.5A (Vehicle max)

  • Standby current

    16mA (max)

  • Regulation method

    MPPT

  • Efficiency

    > 95% (max)

  • Communication

    CAN Bus

  • Dimensions (LxWxH)

    84 x 118 x 41mm

  • Weight

    407g

Downloads

SXC300-KIT2 Datasheet SXC300-12 Installation & User Instructions
