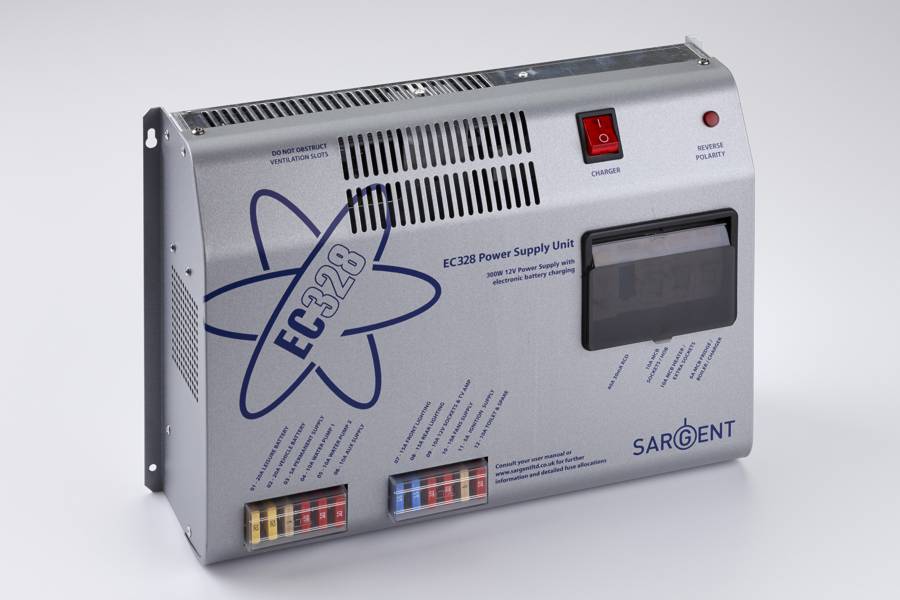

The EC328 PSU that has now replaced the earlier EC325 model.

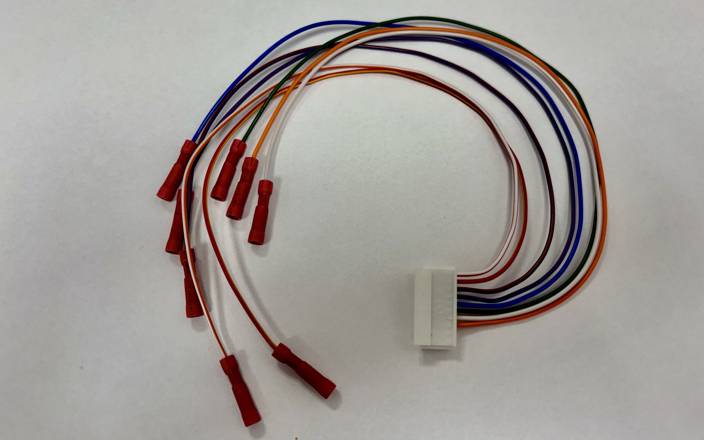

If you are replacing a PSU2007 (EC200) unit please select the option above and a small adaptor harness will be included in your order.
When replacing an EC325 or PSU2007 (EC200) you may also need to upgrade the control panel. To check if this is required please power up the system and check the software version of the control panel, this will be displayed in the centre for example V1.2. If the version is V2.2 or below, then you will also need to purchase a replacement universal control panel (part number EC***CP) to prevent errors from being displayed on the system.
The EC328's key features are listed below:
New intelligent 300-watt (~25A) battery charger and power supply which incorporates a 3 stage intelligent charge routine. Built in solar panel regulator for the direct connection of up to a 100 watt solar panel providing the simultaneous charging of both the leisure and vehicle batteries. The charge current is displayed on the matching EC328 control panel.
