PX310 Charger

PX310 Charger

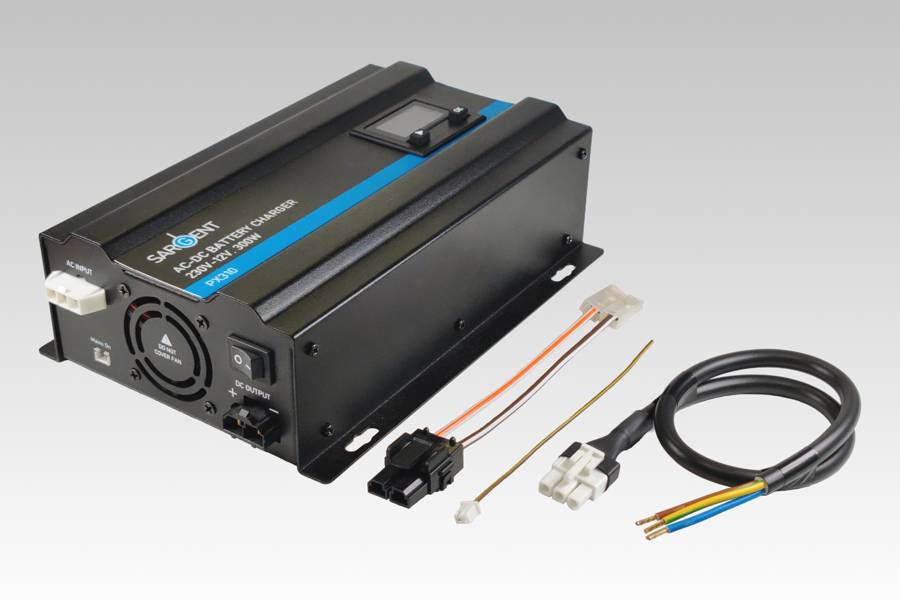

Product no: PX310-KIT

The PX310 is a 300W 3-stage intelligent battery charger and power supply with LCD display.

  • Price

    £166.34 each inc. VAT

  • Lead time

    5 working days
- +

Description

The PX310 multi-stage battery charger is designed for leisure vehicle applications, providing power for both battery charging and 12 volt appliances.

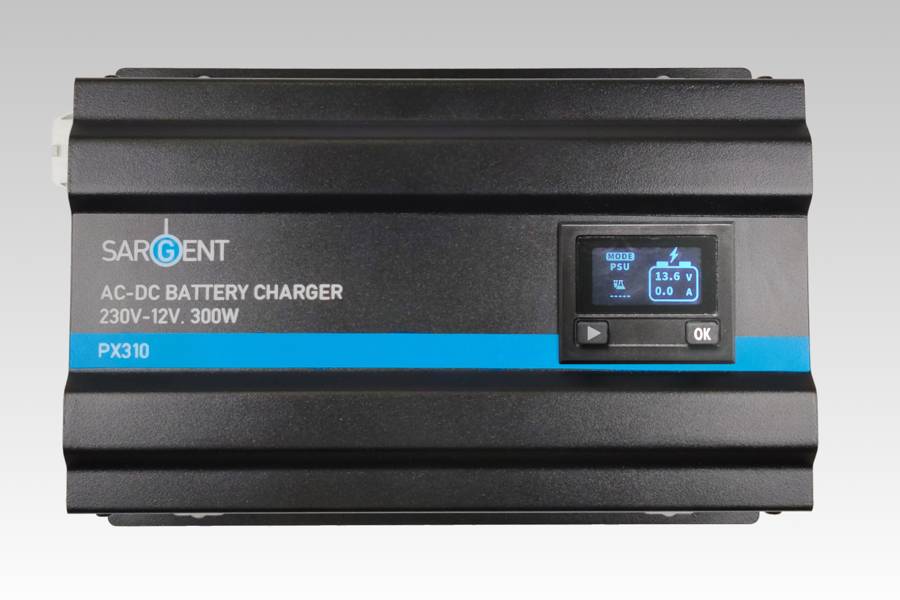

The integrated LCD display shows battery charging status and allows setup for different battery chemistries.

A PSU mode allows the charger to be used without a battery fitted and the Silent mode avoids noise during overnight charging.

If replacing a manufacturer fitted PX300, please order the appropriate conversion harness, as connections on the PX310 are different.

Specification

  • Power

    300W (max)

  • Input voltage range

    200 - 240VAC

  • Charging Current

    20A @14.5V (max)

  • Boost Voltage

    14.7V (max)

  • Float Voltage

    13.8V (max)

  • Compatible batteries

    Flooded, Gel, AGM, Lithium

  • Battery size

    70 - 220Ah

  • Cooling method

    Intelligent fan with Silent Mode

  • Dimensions (LxWxH)

    221 x 157 x 69mm

  • Weight

    1.55kg

Downloads

PX310 Datasheet PX310 User Instructions
