20 Amp, DC-DC Fridge Booster

20 Amp, DC-DC Fridge Booster

Product no: DC20-KIT

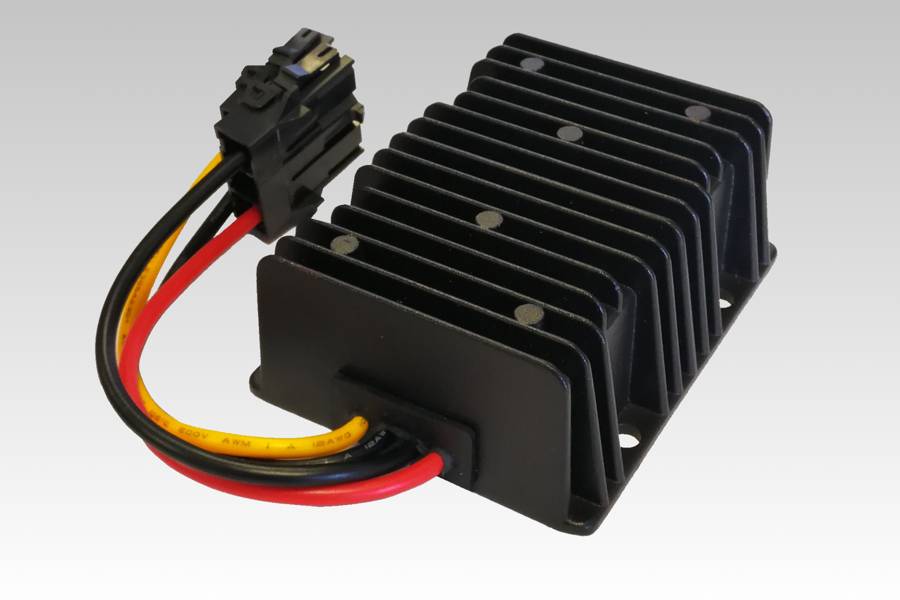

Compact 20amp DC-DC booster for fridges

  • Price

    £101.65 each inc. VAT

  • Lead time

    5 working days
- +

Description

This unit is a compact, cost effective option for boosting the 12 volt supply to absorption type fridges during driving. This ensures the fridge can deliver its optimum cooling performance and its contents remain chilled for the whole journey.

The booster features a rugged waterproof casing with silent fanless cooling.

Supplied with connector kit for plug & play installation

Note:- Recommended for use on fridge elements up to 170 Watts maximum

Specification

  • Output Power

    181Watts (with 10V Input)

  • 197Watts (with 11V Input)

  • 215Watts (with 12V Input)

  • 234Watts (with 13V Input)

  • Input voltage range

    10 - 16V

  • Output voltage

    14.5V

  • Output current

    20A (max)

  • Standby current

    20mA (max)

  • Efficiency @12V

    95%

  • Ingress rating

    IP68

  • Dimensions (LxWxH)

    100 x 78 x 39mm

  • Weight

    500g

Downloads

DC20-12 Installation & User Instructions DC20-KIT Datasheet
