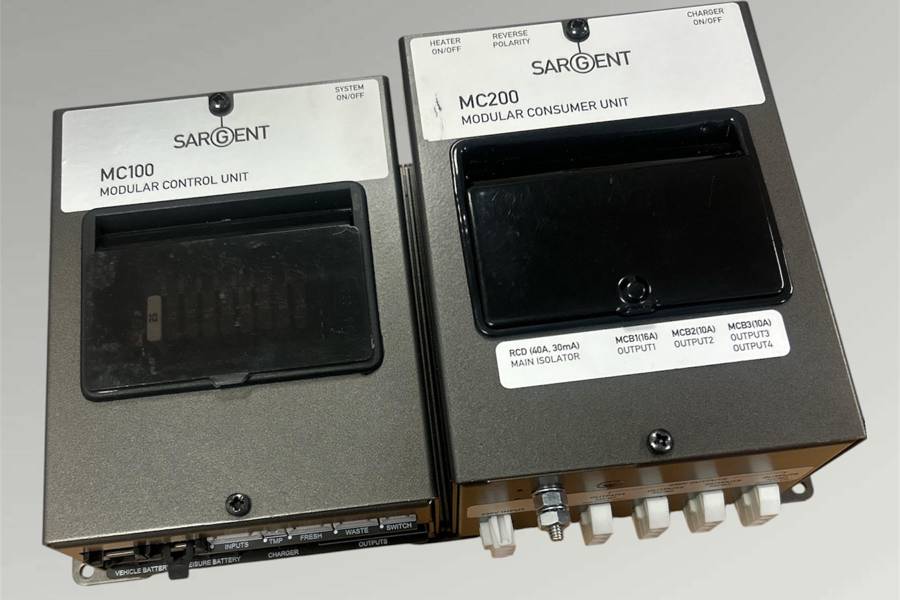

MC100 & MC200 Power Supply Unit

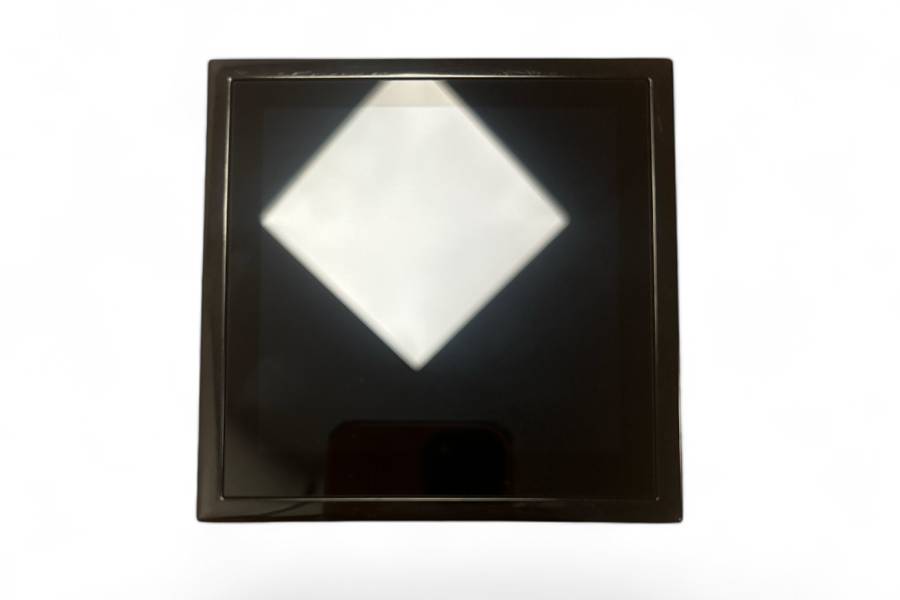

EC940 Control Panel

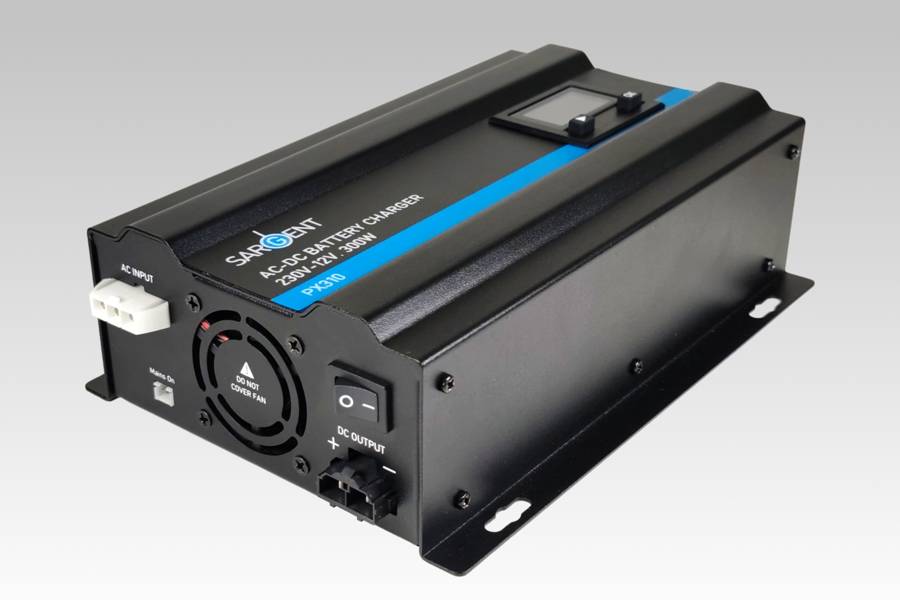

PX310 Battery Charger

Fresh Water Stud & Screws

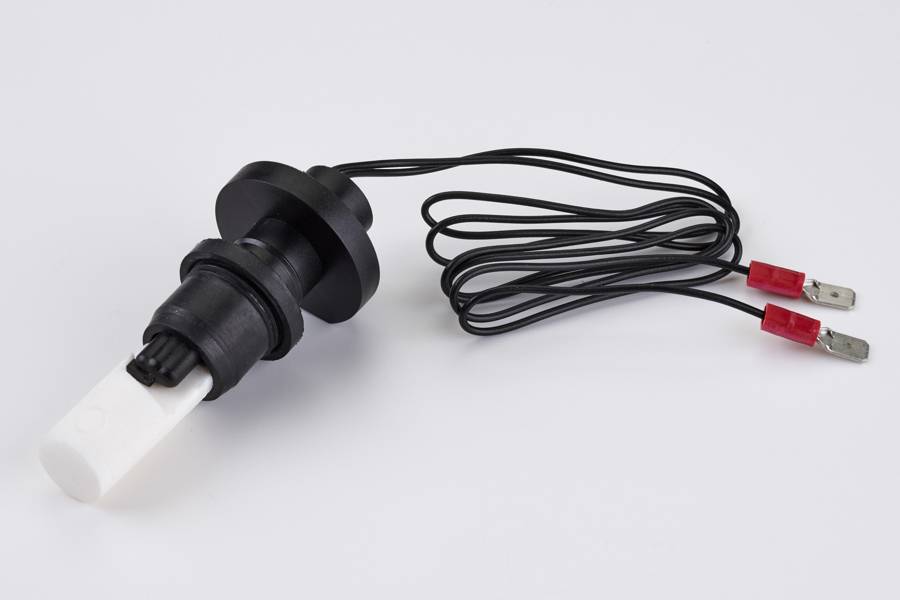

Waste Water Float Sensor

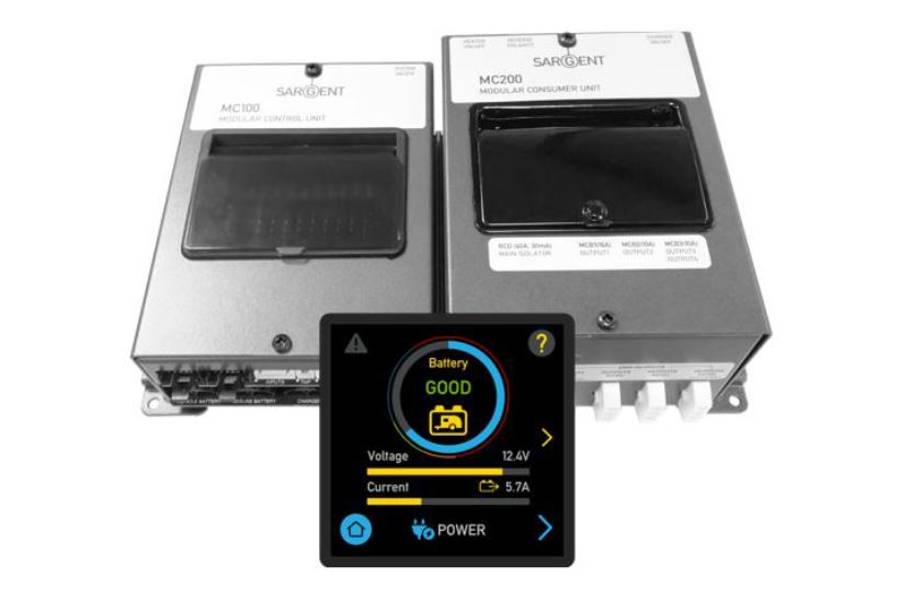

Modular Power System Kit with 4" Display

Product no: K940A

Complete power system kit containing:- Control Unit, Mains Unit, 4" Display, Battery Charger, Water sensors, Wiring harnesses & Connector/Fuse kit

Description

The Modular Power System is both compact and flexible, allowing mounting as a single unit or separately where space is a premium.

The EC940 4" touchscreen display offers intuitive controls for monitoring and control of Lighting, Power, Water and Environmental sensors.

The MC100 is the hub of the system providing power, switching and monitoring for 12 volt accessories such as heating, lighting and water systems.

The MC200 provides RCD and MCB protection for 230 volt mains circuits.

The system can be easily expanded through the addition of intelligent CAN Bus accessories such as:

Lithium batteries,
Ultrasonic water sensors,
Solar regulators
Battery chargers

Specification

Leisure & Vehicle Inputs
2 x 20A battery inputs via 2-way connectors
Charger Input
1 x 25A input via 2-way connector
Outputs
Up to 25A total output via 8 x blade fuses
Inputs (signals)
Engine run + multiple vehicle connections
Temperature Input
1 x External Temp Sensor
Fresh & Waste Inputs
4 x Fresh levels, 1 x Waste level
Communication
CAN Bus
Input Voltage
230V AC @ 0-16A
Output Protection
RCD: 1x40A, 30mA
Output Protection
MCBs: 1x16A + 2x10A
Compatible Battery Chemistries
Lithium, Lead-Acid, Flooded, AGM & Gel
